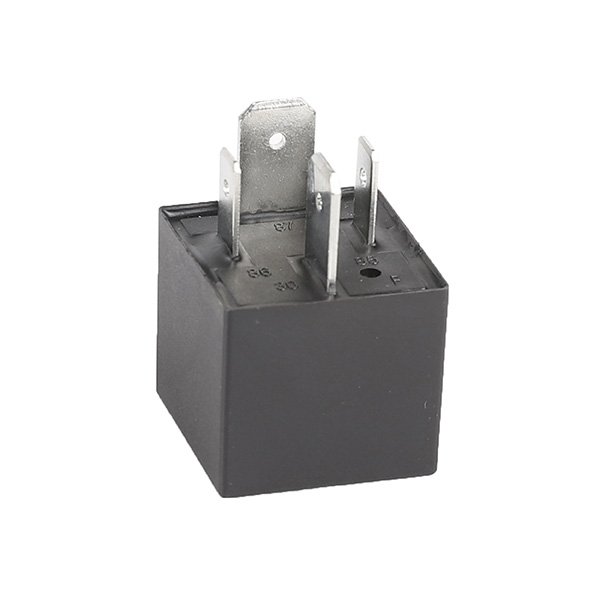

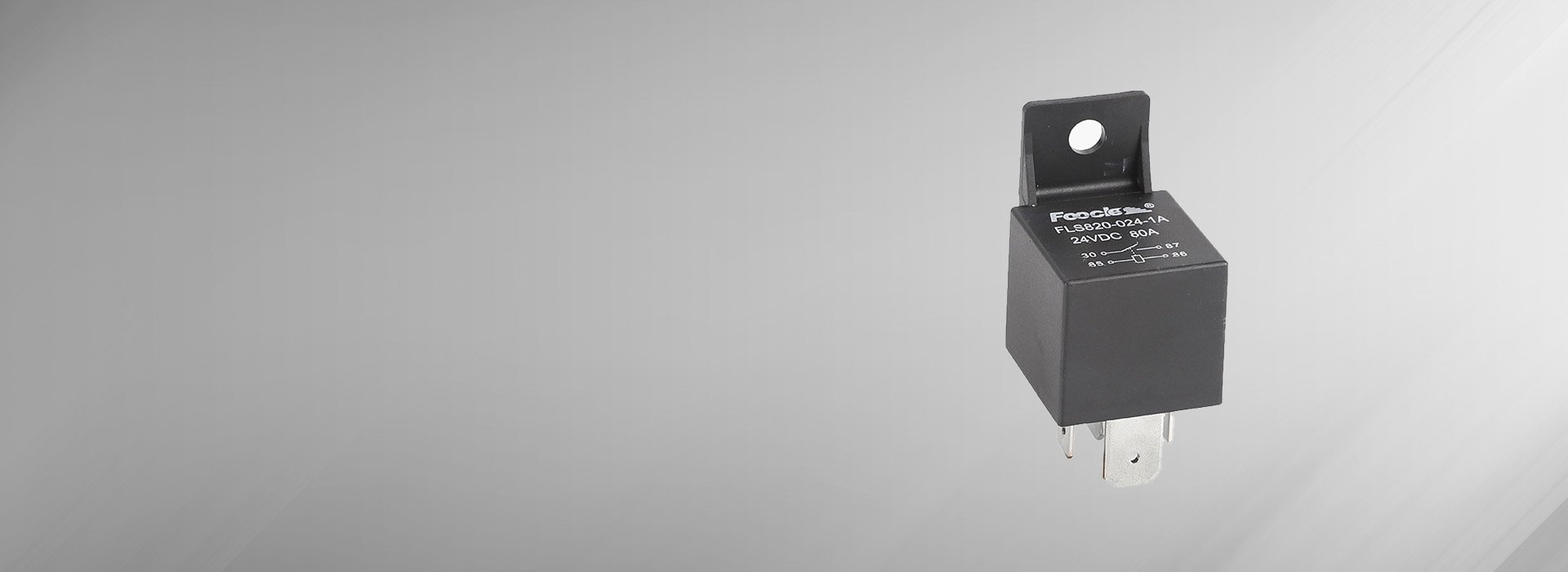

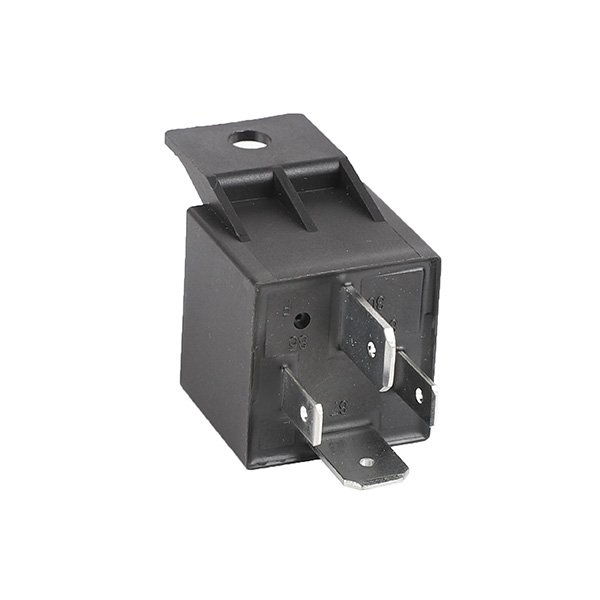

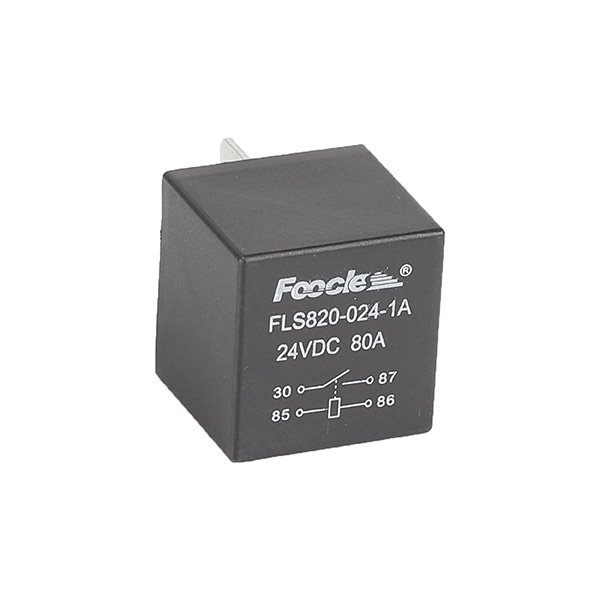

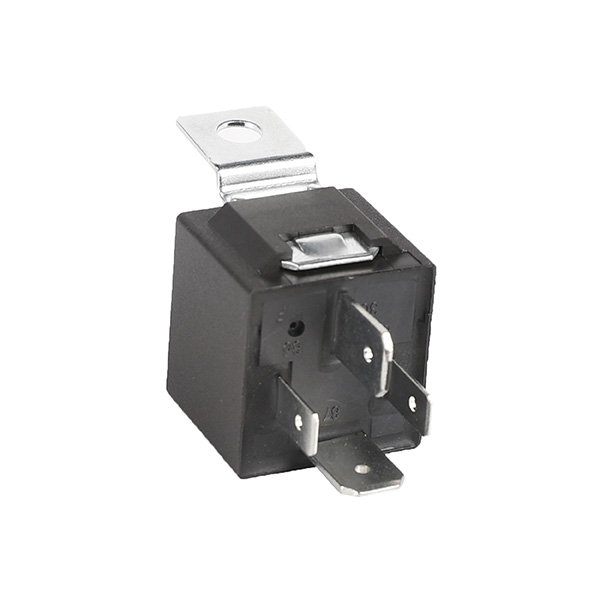

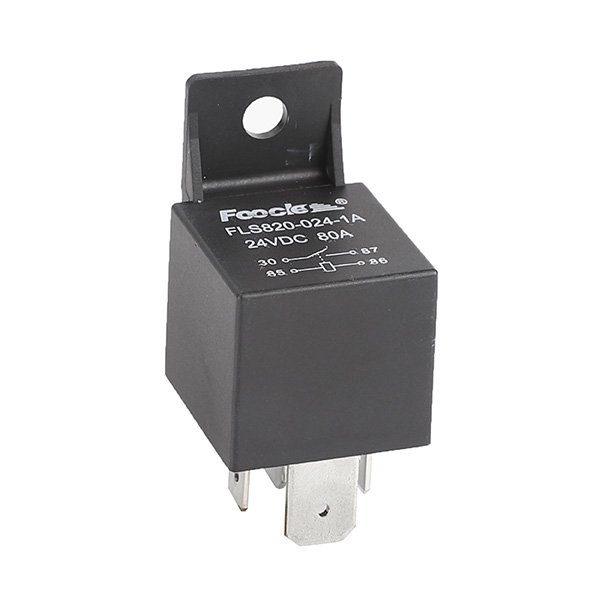

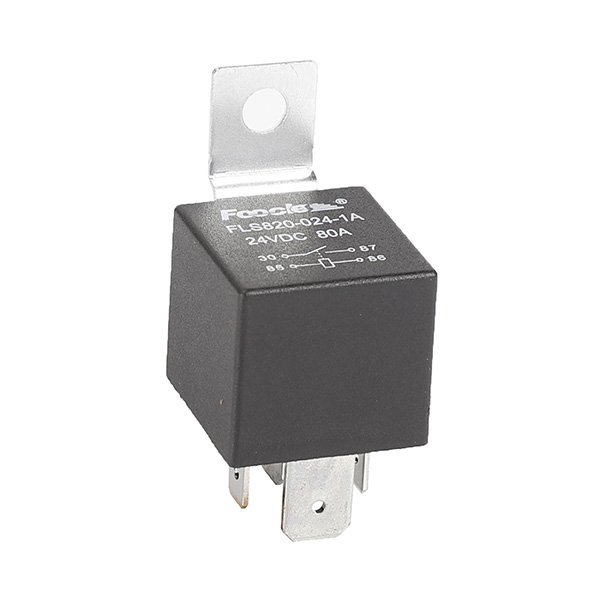

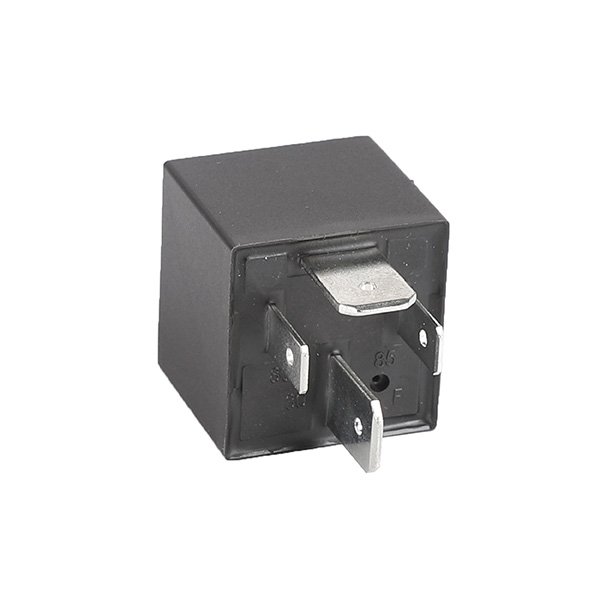

Model: FLS820K
High Amp Automotive Relay
- 80A switching capability
- 9.5mm pins+ 6.3mm pins
- 1 form A, 1 form C contact form
- Dust cover type and plastic seal type are available
- Outline dimensions: 25.0X27.4X28.4mm
Highlights of Foocles High Amp Relay
High Current Design Pin
The pins have been widened specifically to accommodate high currents.
Flame Retardant Housing
Protecting relays from malfunctioning in complex environments such as high temperatures and oil mist.
Easy to Install
Standard size, can be easily inserted and removed from the socket.
Extremely Long Electrical Life
Compared with ordinary silver alloy contacts, Agsno2In is less prone to sticking or welding.
High Current Automotive Relay
Specially enhanced Agsno2In contact materials and others provide higher current carrying capacity.
- Specification
- Coil Ratings
| Contact Form | 1A, 1C |
| Contact Material | Agsno2In |
| Max,Operating Current | 80A |
| Max.Operating Voltage | 27VDC |
| Rated Load（Resistive load） | 80A 13.5VDC 40A 27VDC 80A/60A 13.5VDC 40A/30A 27VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength（Coil and Contact） | 500VAC/M |
| Ambient Temperature | -40°C~+85°C |
| Operate/Release Time | ≤10ms |
| Release Time | ≤5ms |
| Mechanical Life | 1 X106 |
| Electrical Life | 1 X105 |
| Terminal Type | QC Terminal |
|
| Rated voltage (VDC) | Operate Voltage (VDC) | Release voltage (VDC) | Coil Resistance (Ω±10%) | Parallel Resistance (Ω±5%) | Equivalent Resistance (Ω±10%) | Coil Power (W) | Maximum coil voltage (VDC) | |
| 20 °C | 85°C | ||||||||
| Standard | 12 | ≤8.4 | ≥1.2 | 80 | – | – | 1.8 | 20.2 | 15.7 |
| 12 | ≤8.4 | ≥1.2 | 80 | 680 | 71.6 | 2.0 | 20.2 | 15.7 | |
| 24 | ≤16.8 | ≥2.4 | 320 | – | – | 1.8 | 40.5 | 31.5 | |
| 24 | ≤16.8 | ≥2.4 | 320 | 2700 | 286 | 2.0 | 40.5 | 31.5 | |
| Low Power | 12 | ≤8.4 | ≥1.2 | 90 | – | – | 1.6 | 20.2 | 15.7 |
| 12 | ≤8.4 | ≥1.2 | 90 | 680 | 79.5 | 1.8 | 20.2 | 15.7 | |
| 24 | ≤16.8 | ≥2.4 | 360 | – | – | 1.6 | 40.5 | 31.5 | |
| 24 | ≤16.8 | ≥2.4 | 360 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 | |
Ordering Guide

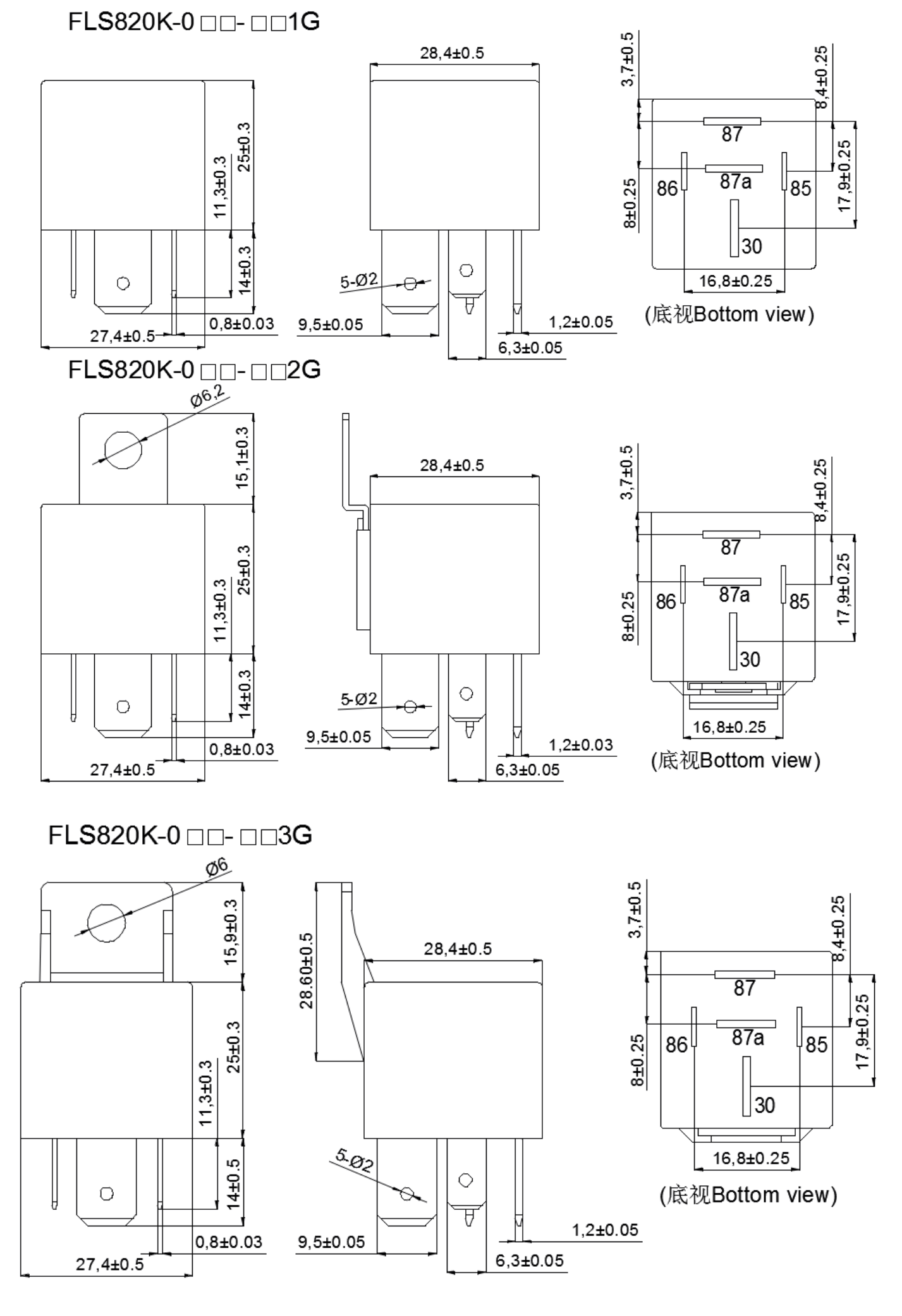

Outline Dimensions
Remark: In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension＞1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension＞5mm, tolerance should be ±0.4mm.

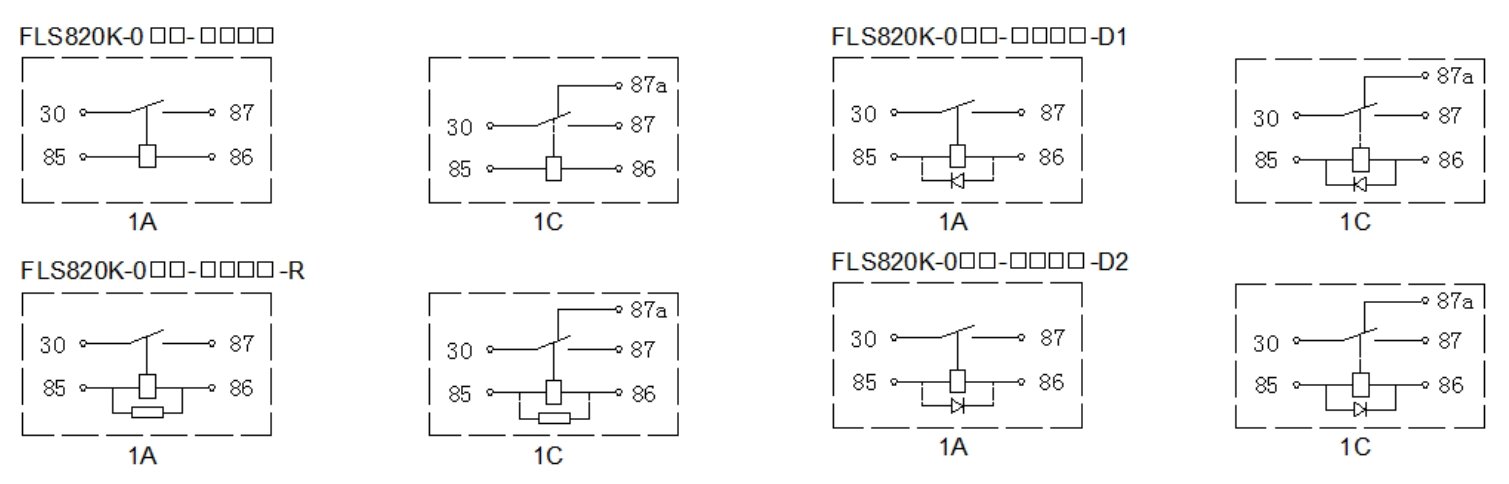

Wiring Diagram (Bottom View)
