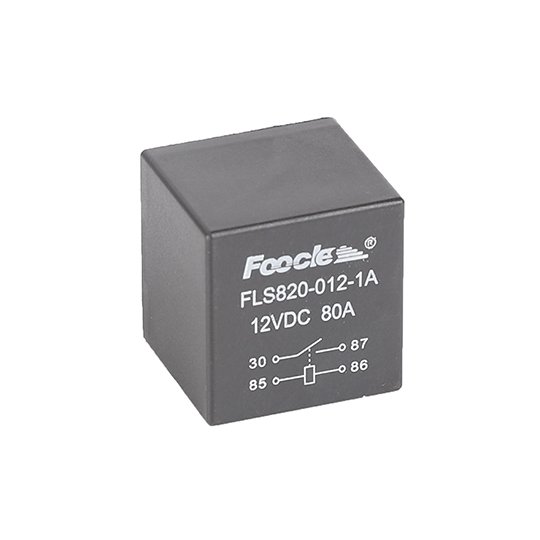

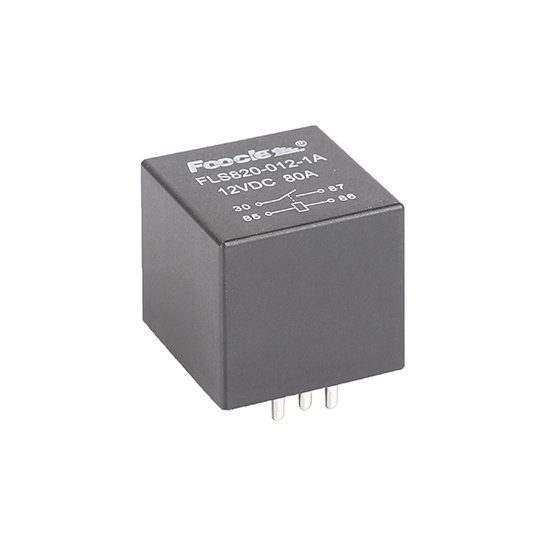

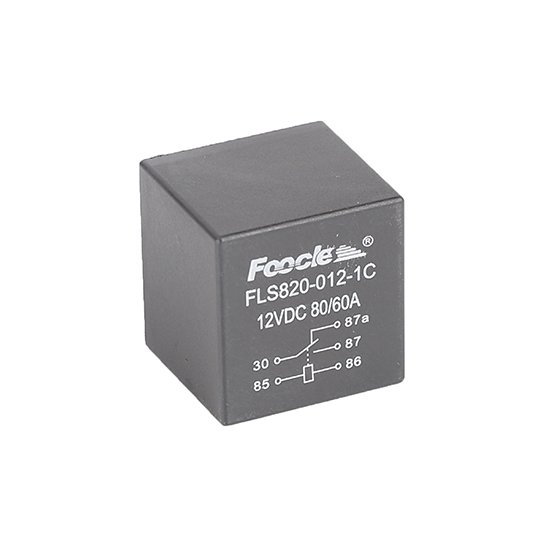

Automotive Micro Relay
- 80A switching capability
- It has 1 form A and 1 form C contact form
- PCB style installation
- Outline dimensions: 25.0X27.4X28.4mm
Features for Foocles PCB Relay
A rated current of up to 80A enables driving heavier loads and extends service life.

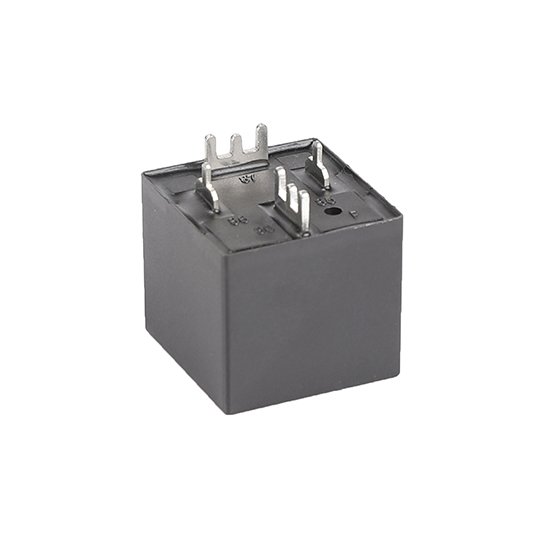

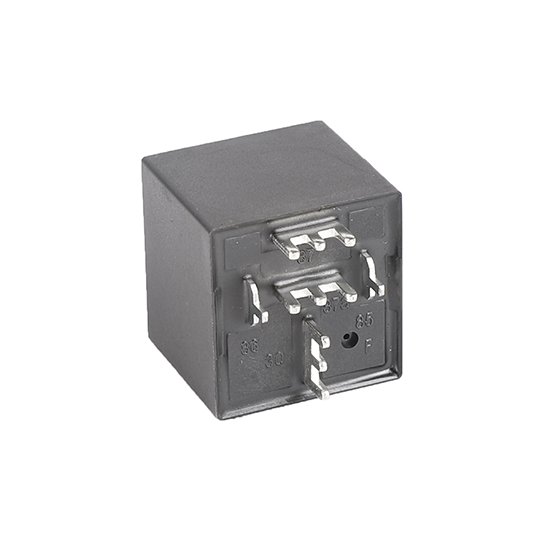

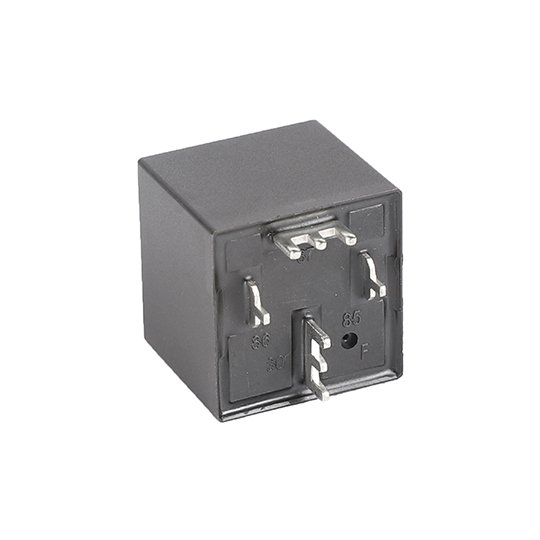

Available with flat pins, raised pins, recessed pins, and other pin types.
Fully automated production and comprehensive product inspection ensure consistent product quality.
We use AgSnO₂In contacts to enhance product longevity.
Automotive PCB Relay
80A High Current PCB Board Mounted Relay with Stable and Reliable Performance, Multiple pin configurations to meet diverse requirements.
- Specification
- Coil Ratings
| Contact Form | 1A, 1C |
| Contact Material | Â Â AgSno2ln |
| Max,Operating Current | 80A |
| Max.Operating Voltage | 27VDC |
| Rated Load（Resistive load） | 80A 13.5VDC  40A 27VDC       80A/60A 13.5VDC  40A/30A  27VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength（Coil and Contact） | 500VAC/M |
| Ambient Temperature | -40°C~+85°C |
| Operate/Release Time | ≤10ms |
| Release Time | ≤5ms |
| Mechanical Life | 1 X106 |
| Electrical Life | 1 X105 |
| Terminal Type | PCBÂ Terminal |
|
| Rated voltage (VDC) | Operate Voltage (VDC) | Release voltage (VDC) | Coil Resistance (Ω±10%) | Parallel Resistance (Ω±5%) | Equivalent Resistance (Ω±10%) | Coil Power (W) | Maximum coil voltage (VDC) | |
| 20 °C | 85°C | ||||||||
| Standard | 12 | ≤8.4 | ≥1.2 | 80 | – | – | 1.8 | 20.2 | 15.7 |
| 12 | ≤8.4 | ≥1.2 | 80 | 680 | 71.6 | 2.0 | 20.2 | 15.7 | |
| 24 | ≤16.8 | ≥2.4 | 320 | – | – | 1.8 | 40.5 | 31.5 | |
| 24 | ≤16.8 | ≥2.4 | 320 | 2700 | 286 | 2.0 | 40.5 | 31.5 | |
| low power | 12 | ≤8.4 | ≥1.2 | 90 | – | – | 1.6 | 20.2 | 15.7 |
| 12 | ≤8.4 | ≥1.2 | 90 | 680 | 79.5 | 1.8 | 20.2 | 15.7 | |
| 24 | ≤16.8 | ≥2.4 | 360 | – | – | 1.6 | 40.5 | 31.5 | |
| 24 | ≤16.8 | ≥2.4 | 360 | 2700 | 317.6 | 1.8 | 40.5 | 31.5 | |
Ordering Guide

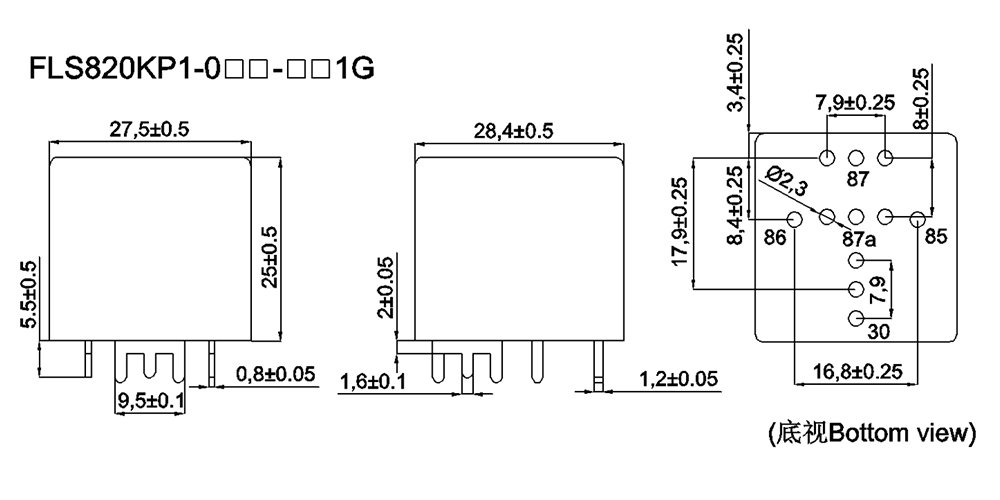

Outline Dimensions
Remark:  In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension＞1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension＞5mm, tolerance should be ±0.4mm.

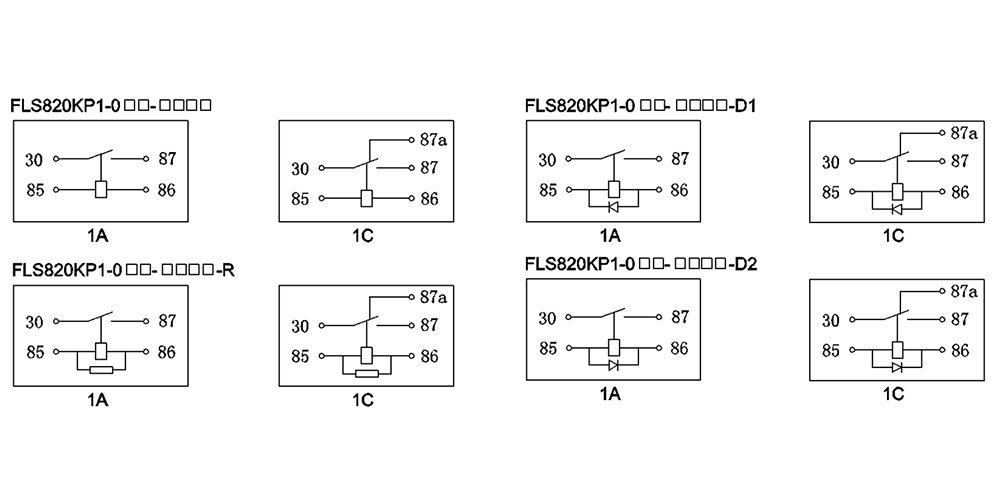

Wiring Diagram (Bottom View)
