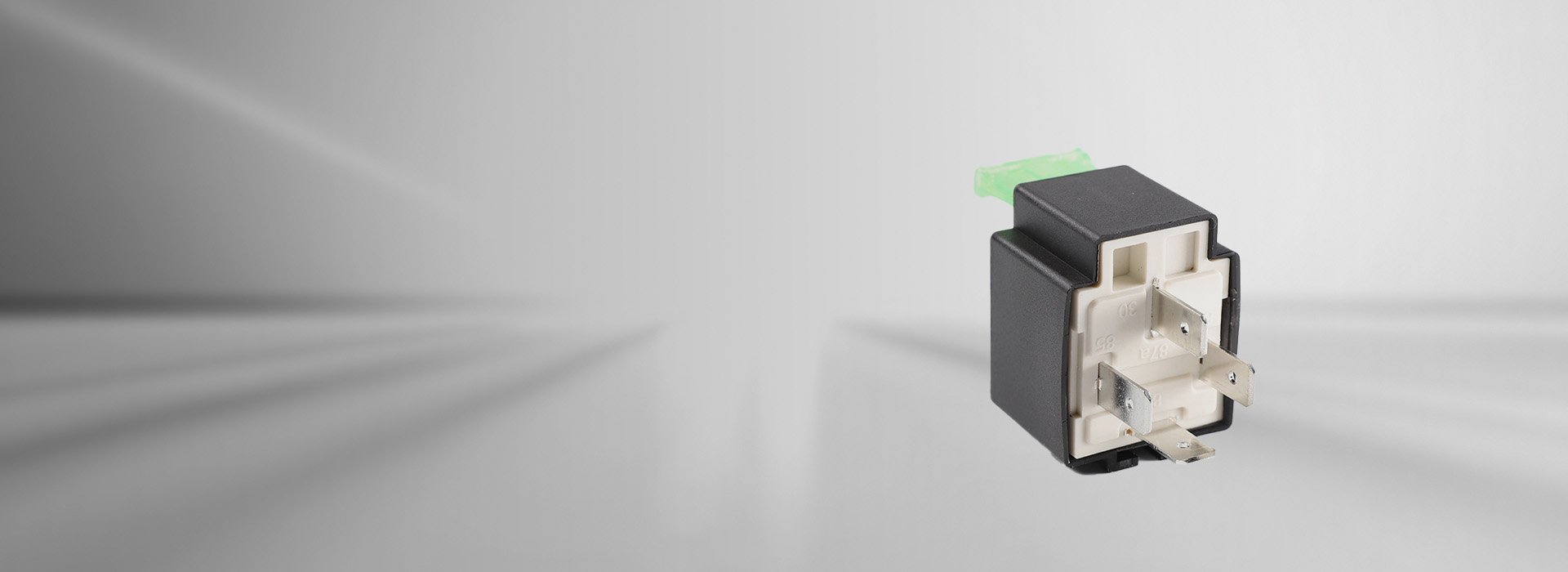

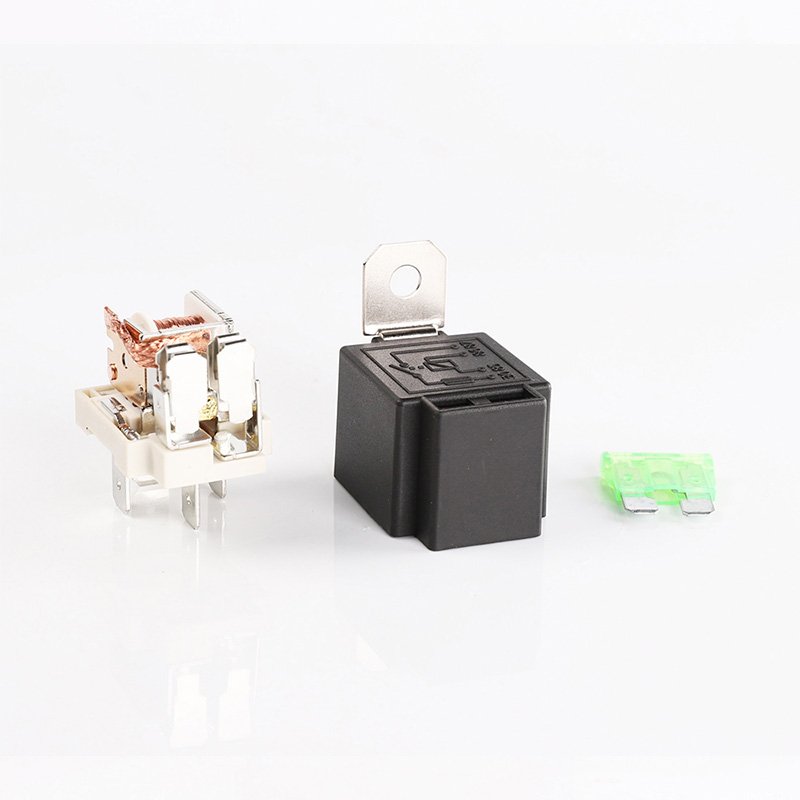

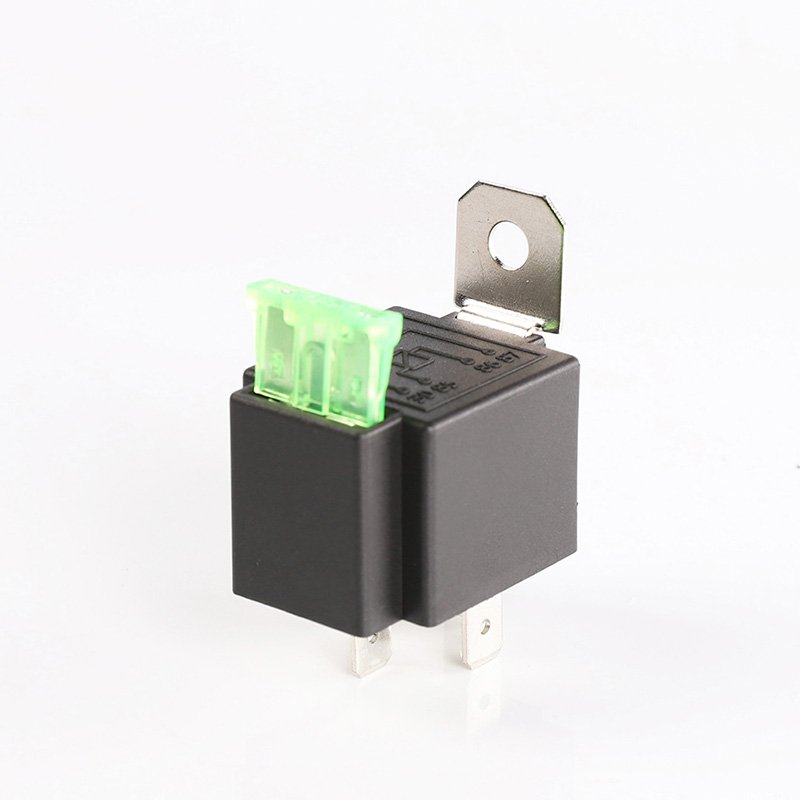

Automotive Fused Relay
- 40A switching capability.
- It has 1 form A and 1 form C contact forms.
- Outline dimensions: 36.8X27.0X23.3mm.
Top Features of Foocles Automotive Fused Relay
Relay protection control circuit, fuse protection relay.
Simply insert the relay to obtain control and protection functions.
Foocles fused relays are manufactured using high-quality materials to ensure long-term stable operation.
The FLS825FU relay has obtained product certifications including CE.

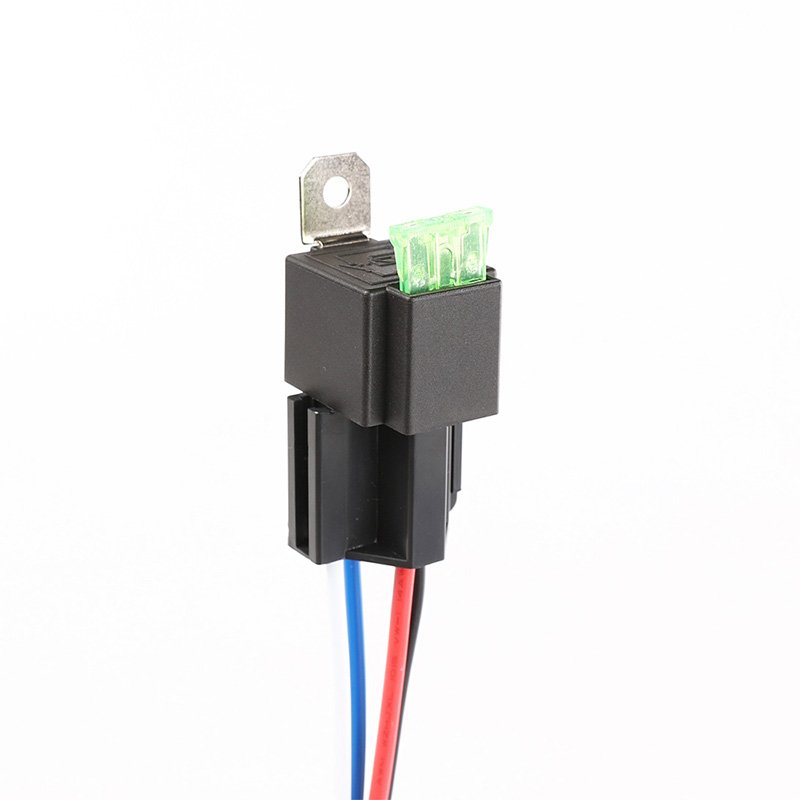

Fused Auto Relay
Integrated relays that provide both control and protection, saving space while reducing wiring and accessory consumption.
- Specification
- Coil Ratings
| Contact Form | 1A, 1C |
| Contact Material | AgSno2 |
| Max,Operating Current | 40A |
| Max.Operating Voltage | 27VDC |
| Rated Load（Resistive load） | 1A: 40A 13.5VDC 1C: NO/NC 30A/20A 13.5VDC |
| Insulation Resistance | 100MΩ |
| Dielectric Strength（Coil and Contact） | 500VAC/M |
| Ambient Temperature | -40°C~+85°C |
| Operate/Release Time | ≤10ms |
| Release Time | ≤5ms |
| Mechanical Life | 1 X106 |
| Electrical Life | 1 X105 |
| Terminal Type | QC Terminal |
|
| Rated voltage (VDC) | Operate Voltage (VDC) | Release voltage (VDC) | Coil Resistance (Ω±10%) | Parallel Resistance (Ω±5%) | Equivalent Resistance (Ω±10%) | Coil Power (W) | Maximum coil voltage (VDC) | |
| 20 °C | 85°C | ||||||||
| Standard | 12 | ≤8.4 | ≥1.2 | 80 | – | – | 1.8 | 20.2 | 15.7 |
| 12 | ≤8.4 | ≥1.2 | 90 | – | – | 1.6 | 20.2 | 15.7 | |
| 24 | ≤16.8 | ≥2.4 | 320 | – | – | 1.8 | 40.5 | 31.5 | |
| 24 | ≤16.8 | ≥2.4 | 360 | – | – | 1.6 | 40.5 | 31.5 | |

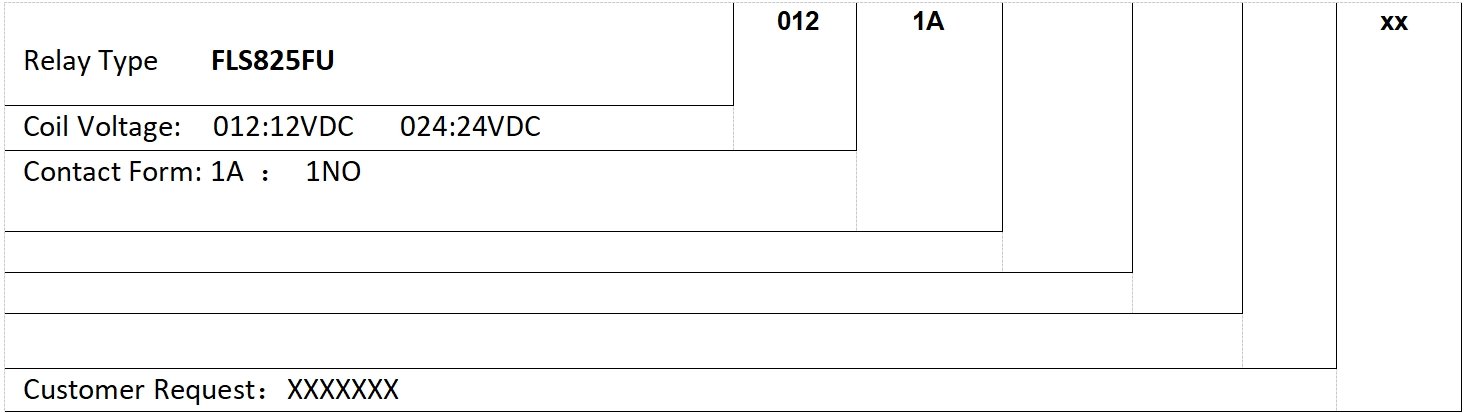

Ordering Guide

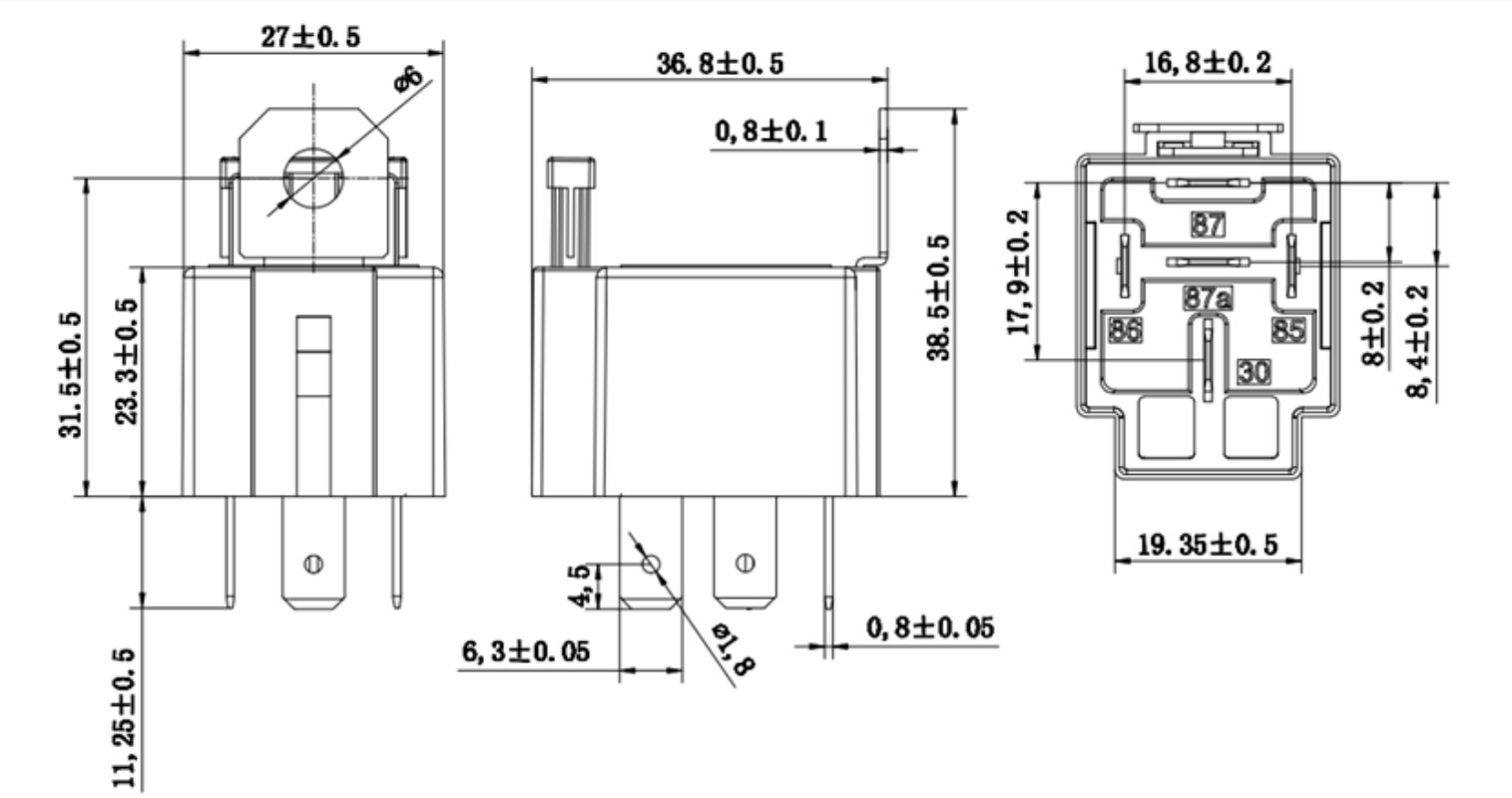

Outline Dimensions
Remark: In case of no tolerance shown in outline dimension: outline dimension≤1mm, tolerance should be ±0.2mm;
Outline dimension＞1mm and ≤5mm, tolerance should be ±0.3mm; outline dimension＞5mm, tolerance should be ±0.4mm.

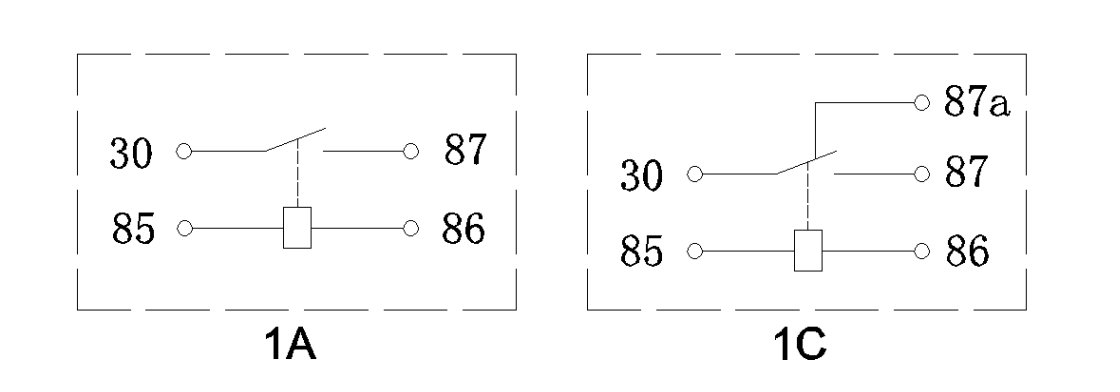

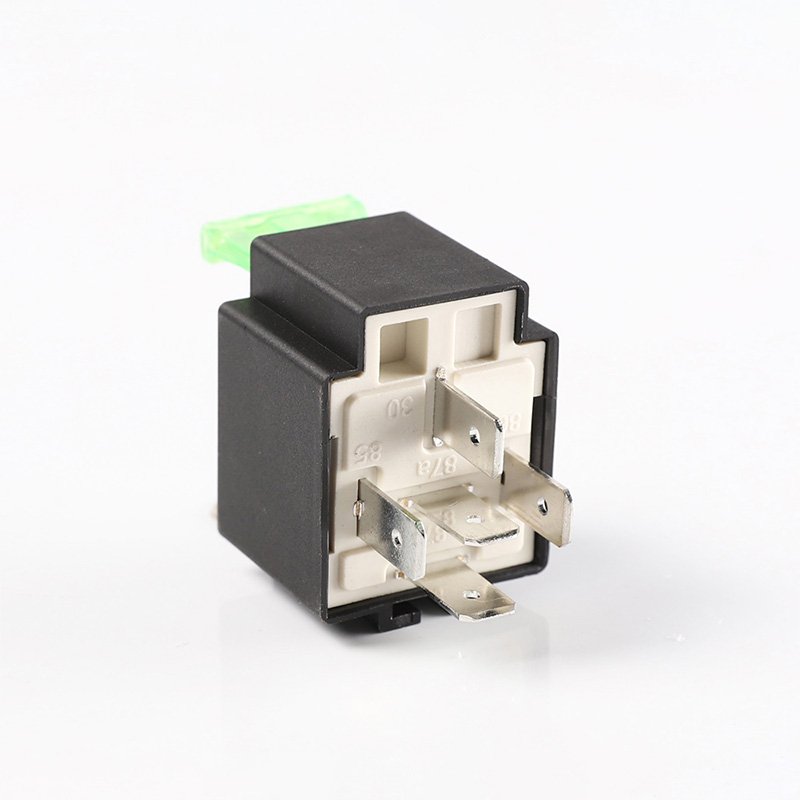

Wiring Diagram (Bottom View)
